#include <uhd/rfnoc/fft_block_control.hpp>

Inheritance diagram for uhd::rfnoc::fft_block_control:

Public Member Functions
virtual void	set_direction (const fft_direction direction)=0

virtual fft_direction	get_direction () const =0

virtual void	set_magnitude (const fft_magnitude magnitude)=0

virtual fft_magnitude	get_magnitude () const =0

virtual void	set_shift_config (const fft_shift shift)=0

virtual fft_shift	get_shift_config () const =0

virtual void	set_scaling_factor (const double factor)=0

virtual void	set_scaling (const uint32_t scaling)=0

virtual uint32_t	get_scaling () const =0

virtual void	set_length (const uint32_t length)=0

virtual uint32_t	get_length () const =0

virtual void	set_bypass_mode (const bool bypass)=0

virtual bool	get_bypass_mode () const =0

virtual uint32_t	get_max_length () const =0

virtual uint32_t	get_max_cp_length () const =0

virtual uint32_t	get_max_cp_removal_list_length () const =0

virtual uint32_t	get_max_cp_insertion_list_length () const =0

virtual void	set_cp_insertion_list (const std::vector< uint32_t > cp_lengths)=0

virtual std::vector< uint32_t >	get_cp_insertion_list () const =0

virtual void	set_cp_removal_list (const std::vector< uint32_t > cp_lengths)=0

virtual std::vector< uint32_t >	get_cp_removal_list () const =0

Public Member Functions inherited from uhd::rfnoc::noc_block_base
	~noc_block_base () override

std::string	get_unique_id () const override
	Unique ID for an RFNoC block is its block ID. More...

size_t	get_num_input_ports () const override

size_t	get_num_output_ports () const override

noc_id_t	get_noc_id () const

const block_id_t &	get_block_id () const

double	get_tick_rate () const

size_t	get_mtu (const res_source_info &edge)

size_t	get_chdr_hdr_len (const bool account_for_ts=true) const

size_t	get_max_payload_size (const res_source_info &edge, const bool account_for_ts=true)

uhd::device_addr_t	get_block_args () const

uhd::property_tree::sptr &	get_tree () const
	Return a reference to this block's subtree. More...

uhd::property_tree::sptr &	get_tree ()
	Return a reference to this block's subtree (non-const version) More...

std::shared_ptr< mb_controller >	get_mb_controller ()

Public Member Functions inherited from uhd::rfnoc::node_t
	node_t ()

virtual	~node_t ()

std::vector< std::string >	get_property_ids () const

template<typename prop_data_t >
void	set_property (const std::string &id, const prop_data_t &val, const size_t instance=0)

void	set_properties (const uhd::device_addr_t &props, const size_t instance=0)

template<typename prop_data_t >
const prop_data_t &	get_property (const std::string &id, const size_t instance=0)

virtual void	set_command_time (uhd::time_spec_t time, const size_t instance)

virtual uhd::time_spec_t	get_command_time (const size_t instance) const

virtual void	clear_command_time (const size_t instance)

Public Member Functions inherited from uhd::rfnoc::register_iface_holder
	register_iface_holder (register_iface::sptr reg)

virtual	~register_iface_holder ()=default

register_iface &	regs ()

Static Public Attributes
static const uint32_t	REG_COMPAT_ADDR
	Register addresses. More...

static const uint32_t	REG_PORT_CONFIG_ADDR

static const uint32_t	REG_CAPABILITIES_ADDR

static const uint32_t	REG_CAPABILITIES2_ADDR

static const uint32_t	REG_RESET_ADDR

static const uint32_t	REG_LENGTH_LOG2_ADDR

static const uint32_t	REG_SCALING_ADDR

static const uint32_t	REG_DIRECTION_ADDR

static const uint32_t	REG_CP_INS_LEN_ADDR

static const uint32_t	REG_CP_INS_LIST_LOAD_ADDR

static const uint32_t	REG_CP_INS_LIST_CLR_ADDR

static const uint32_t	REG_CP_INS_LIST_OCC_ADDR

static const uint32_t	REG_CP_REM_LEN_ADDR

static const uint32_t	REG_CP_REM_LIST_LOAD_ADDR

static const uint32_t	REG_CP_REM_LIST_CLR_ADDR

static const uint32_t	REG_CP_REM_LIST_OCC_ADDR

static const uint32_t	REG_OVERFLOW_ADDR

static const uint32_t	REG_BYPASS_ADDR

static const uint32_t	REG_ORDER_ADDR

static const uint32_t	REG_MAGNITUDE_ADDR

static const uint32_t	REG_RESET_ADDR_V1
	Register addresses of the FFT block version 1. More...

static const uint32_t	REG_LENGTH_LOG2_ADDR_V1

static const uint32_t	REG_MAGNITUDE_ADDR_V1

static const uint32_t	REG_DIRECTION_ADDR_V1

static const uint32_t	REG_SCALING_ADDR_V1

static const uint32_t	REG_ORDER_ADDR_V1

Static Public Attributes inherited from uhd::rfnoc::node_t
static const size_t	ANY_PORT = size_t(~0)

Additional Inherited Members
Public Types inherited from uhd::rfnoc::noc_block_base
using	sptr = std::shared_ptr< noc_block_base >

using	make_args_ptr = std::unique_ptr< make_args_t >
	Opaque pointer to the constructor arguments. More...

Public Types inherited from uhd::rfnoc::node_t
enum	forwarding_policy_t { forwarding_policy_t::ONE_TO_ONE, forwarding_policy_t::ONE_TO_FAN, forwarding_policy_t::ONE_TO_ALL_IN, forwarding_policy_t::ONE_TO_ALL_OUT, forwarding_policy_t::ONE_TO_ALL, forwarding_policy_t::DROP, forwarding_policy_t::USE_MAP }
	Types of property/action forwarding for those not defined by the block itself. More...

using	resolver_fn_t = std::function< void(void)>

using	resolve_callback_t = std::function< void(void)>

using	graph_mutex_callback_t = std::function< std::recursive_mutex &(void)>

using	action_handler_t = std::function< void(const res_source_info &, action_info::sptr)>

using	forwarding_map_t = std::unordered_map< res_source_info, std::vector< res_source_info > >

Protected Types inherited from uhd::rfnoc::node_t
using	prop_ptrs_t = std::vector< property_base_t * >

Protected Member Functions inherited from uhd::rfnoc::noc_block_base
	noc_block_base (make_args_ptr make_args)

void	set_num_input_ports (const size_t num_ports)

void	set_num_output_ports (const size_t num_ports)

void	set_tick_rate (const double tick_rate)

void	set_mtu_forwarding_policy (const forwarding_policy_t policy)

void	set_mtu (const res_source_info &edge, const size_t new_mtu)

property_base_t *	get_mtu_prop_ref (const res_source_info &edge)

virtual void	deinit ()

Protected Member Functions inherited from uhd::rfnoc::node_t
void	register_property (property_base_t *prop, resolve_callback_t &&clean_callback=nullptr)

void	add_property_resolver (prop_ptrs_t &&inputs, prop_ptrs_t &&outputs, resolver_fn_t &&resolver_fn)

void	set_prop_forwarding_policy (forwarding_policy_t policy, const std::string &prop_id="")

void	set_prop_forwarding_map (const forwarding_map_t &map)

template<typename prop_data_t >
void	set_property (const std::string &id, const prop_data_t &val, const res_source_info &src_info)

template<typename prop_data_t >
const prop_data_t &	get_property (const std::string &id, const res_source_info &src_info)

void	register_action_handler (const std::string &id, action_handler_t &&handler)

void	set_action_forwarding_policy (forwarding_policy_t policy, const std::string &action_key="")

void	set_action_forwarding_map (const forwarding_map_t &map)

void	post_action (const res_source_info &edge_info, action_info::sptr action)

virtual bool	check_topology (const std::vector< size_t > &connected_inputs, const std::vector< size_t > &connected_outputs)

Protected Member Functions inherited from uhd::rfnoc::register_iface_holder
void	update_reg_iface (register_iface::sptr new_iface=nullptr)

Static Protected Attributes inherited from uhd::rfnoc::node_t
static dirtifier_t	ALWAYS_DIRTY
	A dirtifyer object, useful for properties that always need updating. More...

Detailed Description

FFT Block (with Cyclic prefix insertion and removal) Control Class

The FFT block is an RFNoC block that accepts signed complex 16-bit data at its input and computes the forward or reverse FFT of the input data, outputting signed complex 16-bit data at its output.

The FFT length is configured via the length parameter, up to a maximum which depends on the instantiation on the FPGA. Use the function get_max_fft_length to determine the maximum supported FFT length.

The length will be coerced to the closest power of two which is smaller than length. The block will output packets of the same length in the desired format as configured via the API.

The block can be configured to add cyclic prefixes (typically when performing an inverse FFT, i.e. repeating a part of the generated time domain signal) or to remove cyclic prefixes (typically when performing a forward FFT, i.e. removing a part of the input time domain signal). This feature makes this block suitable for OFDM (de-)modulation.

Member Function Documentation

◆ get_bypass_mode()

virtual bool uhd::rfnoc::fft_block_control::get_bypass_mode ( ) const

pure virtual

Get the bypass mode of the FFT

Returns the current bypass mode.

Returns: Current FFT bypass mode

◆ get_cp_insertion_list()

virtual std::vector<uint32_t> uhd::rfnoc::fft_block_control::get_cp_insertion_list ( ) const

pure virtual

Gets the values from the cyclic prefix insertion list.

Gets values to the cyclic prefix insertion list. After initialization, no CP insertion values are configured. Use the function set_cp_insertion_list to set the values.

Parameters

cp_lengths The cyclic prefix lengths to be written to the list

◆ get_cp_removal_list()

virtual std::vector<uint32_t> uhd::rfnoc::fft_block_control::get_cp_removal_list ( ) const

pure virtual

Gets the values from the cyclic prefix removal list.

Gets values to the cyclic prefix removal list. After initialization, no CP removal values are configured. Use the function set_cp_removal_list to set the values.

Parameters

cp_lengths The cyclic prefix lengths to be written to the list

◆ get_direction()

virtual fft_direction uhd::rfnoc::fft_block_control::get_direction ( ) const

pure virtual

Get the FFT direction

Returns the current direction of the FFT.

Returns: FFT direction

◆ get_length()

virtual uint32_t uhd::rfnoc::fft_block_control::get_length ( ) const

pure virtual

Get the length of the FFT

Returns the current length of the FFT.

Returns: Current FFT length

◆ get_magnitude()

virtual fft_magnitude uhd::rfnoc::fft_block_control::get_magnitude ( ) const

pure virtual

Get the format of the returned FFT output data

Returns the current output format of the FFT data.

Returns: Format of the returned FFT output data

◆ get_max_cp_insertion_list_length()

virtual uint32_t uhd::rfnoc::fft_block_control::get_max_cp_insertion_list_length ( ) const

pure virtual

Get the maximum supported number of values that can be written to the cyclic prefix insertion list

Returns the maximum supported number of values that can be written to the cyclic prefix insertion list.

Returns: Maximum number of values for the cyclic prefix insertion list

◆ get_max_cp_length()

virtual uint32_t uhd::rfnoc::fft_block_control::get_max_cp_length ( ) const

pure virtual

Get the maximum supported cyclic prefix length

Returns the maximum supported cyclic prefix length.

Returns: Maximum supported cyclic prefix length

◆ get_max_cp_removal_list_length()

virtual uint32_t uhd::rfnoc::fft_block_control::get_max_cp_removal_list_length ( ) const

pure virtual

Get the maximum supported number of values that can be written to the cyclic prefix removal list

Returns the maximum supported number of values that can be written to the cyclic prefix removal list.

Returns: Maximum number of values for the cyclic prefix removal list

◆ get_max_length()

virtual uint32_t uhd::rfnoc::fft_block_control::get_max_length ( ) const

pure virtual

Get the maximum supported length of the FFT

Returns the maximum supported length of the FFT.

Returns: Maximum supported FFT length

◆ get_scaling()

virtual uint32_t uhd::rfnoc::fft_block_control::get_scaling ( ) const

pure virtual

Get the scaling schedule for the FFT block

Returns the current scaling schedule for the FFT block.

Returns: Scaling schedule for the FFT block

◆ get_shift_config()

virtual fft_shift uhd::rfnoc::fft_block_control::get_shift_config ( ) const

pure virtual

Get the shift configuration of the output FFT data

Returns the current shift configuration of the output FFT data.

Returns: Shift configuration of the output FFT data

◆ set_bypass_mode()

virtual void uhd::rfnoc::fft_block_control::set_bypass_mode ( const bool bypass )

pure virtual

Set the bypass mode of the FFT

Enable FFT bypass mode. Set true to enable, false to disable. When enabled, the data is passed through without any FFT processing. Note that cyclic prefix insertion will not work in bypass mode, because insertion is handled by the FFT core, but cyclic prefix removal will work.

Parameters

bypass FFT bypass moe

◆ set_cp_insertion_list()

virtual void uhd::rfnoc::fft_block_control::set_cp_insertion_list ( const std::vector< uint32_t > cp_lengths )

pure virtual

Load values to the cyclic prefix insertion list.

Loads values to the cyclic prefix insertion list. Each value represents the length of a cyclic prefix that is prepended to the output of the (typically inverse) FFT operation (typically the time domain signal). If the length of the cyclic prefix insertion list is m, then the cyclic prefix length that is added to the output signal of symbol n is:

cp_length[n] = cp_length[n mod m]

Parameters

cp_lengths The cyclic prefix lengths to be written to the list

◆ set_cp_removal_list()

virtual void uhd::rfnoc::fft_block_control::set_cp_removal_list ( const std::vector< uint32_t > cp_lengths )

pure virtual

Load values to the cyclic prefix removal list.

Loads values to the cyclic prefix removal list. Each value represents the length of a cyclic prefix that is removed from the input signal (typically the time domain signal) before performing the (typically forward) FFT operation. If the length of the cyclic prefix removal list is m, then the cyclic prefix length that is removed from the input signal of symbol n is:

cp_length[n] = cp_length[n mod m]

Parameters

cp_lengths The cyclic prefix lengths to be written to the list

◆ set_direction()

virtual void uhd::rfnoc::fft_block_control::set_direction ( const fft_direction direction )

pure virtual

Set the FFT direction

Sets the direction of the FFT, either forward (FORWARD) or inverse (REVERSE).

Parameters

direction FFT direction

◆ set_length()

virtual void uhd::rfnoc::fft_block_control::set_length ( const uint32_t length )

pure virtual

Set the length of the FFT

Sets the length of the FFT in number of samples. Note that the FFT IP requires a power-of-two number of samples; the incoming value will be coerced to the closest smaller power of two.

Parameters

length Desired FFT length

◆ set_magnitude()

virtual void uhd::rfnoc::fft_block_control::set_magnitude ( const fft_magnitude magnitude )

pure virtual

Set the format of the returned FFT output data

Sets the format in which the FFT output data is returned. The following formats are supported:

* amplitude/phase data (COMPLEX)
* magnitude data (MAGNITUDE)
* mag-squared data (MAGNITUDE_SQUARED)

Parameters

magnitude Format of the returned FFT output data

◆ set_scaling()

virtual void uhd::rfnoc::fft_block_control::set_scaling ( const uint32_t scaling )

pure virtual

Set the scaling schedule for the FFT block

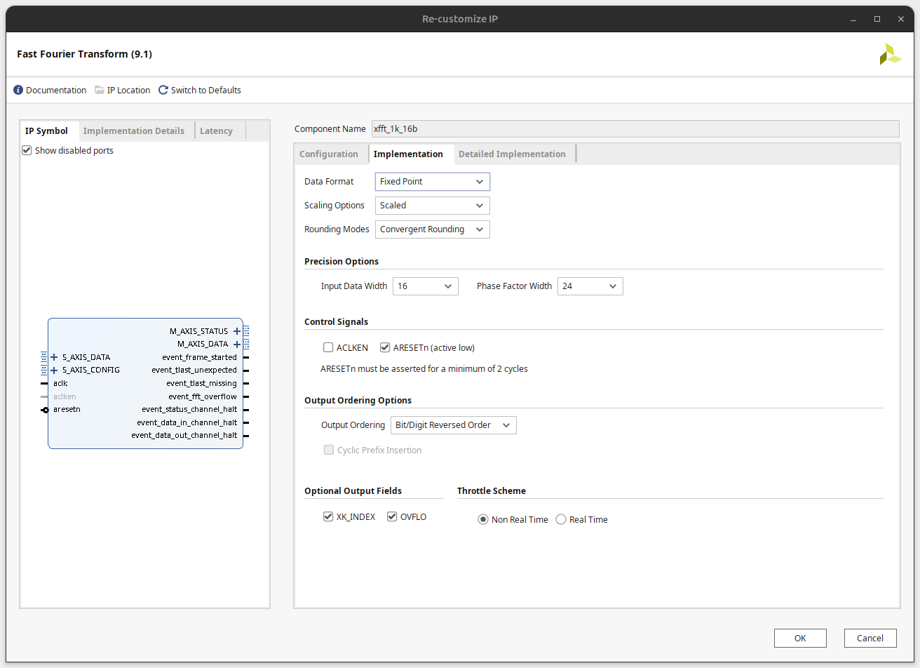

Sets the scaling for each stage of the FFT. This value maps directly to the scale schedule field in the configuration channel data that is passed to the Xilinx AXI FFT IP. For more information on the format of this data, see Xilinx document PG109, Fast Fourier Transform LogiCORE IP Product Guide.

Examples:

scaling = 0b000000000000 -> no scaling
scaling = 0b000000000001 -> scale by 2 in the first FFT stage
scaling = 0b000000001010 -> scale by 4 in both the first and the second FFT stage
scaling = 0b000000011010 -> scale by 4 in both the first and the second FFT stage and by 2 in the third FFT stage

Parameters

scaling Scaling schedule for the FFT block

◆ set_scaling_factor()

virtual void uhd::rfnoc::fft_block_control::set_scaling_factor ( const double factor )

pure virtual

Set the scaling factor for the FFT block

This is a convenience function which can be used instead of set_scaling(). Based on the given factor, it automatically sets the scaling mask by evenly distributing the scaling across the active FFT stages

Examples:

factor = 1.0 -> no scaling
factor = 0.5 (1/2) -> the scaling will be set to 0b000000000001 -> scale by 2 in the first FFT stage
factor = 0.0625 (1/16) -> the scaling will be set to 0b000000001010 -> scale by 4 in both the first and the second FFT stage
factor = 0.03125 (1/32) -> the scaling will be set to 0b000000011010 -> scale by 4 in both the first and the second FFT stage and by 2 in the third FFT stage

Parameters

factor Desired scaling factor

◆ set_shift_config()

virtual void uhd::rfnoc::fft_block_control::set_shift_config ( const fft_shift shift )

pure virtual

Set the shift configuration of the output FFT data

Sets how the FFT output data is shifted (to get the zero frequency bin to the center of the output data). The following output data shift configurations are supported:

* Negative frequencies first, then positive frequencies (NORMAL)
* Positive frequencies first, then negative frequencies (REVERSE)
* Bypass the shift altogether, leaving the zero frequency bin
  returned first (NATURAL).

Parameters

shift Configuration for shifting FFT output data

Member Data Documentation

◆ REG_BYPASS_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_BYPASS_ADDR

static

◆ REG_CAPABILITIES2_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_CAPABILITIES2_ADDR

static

◆ REG_CAPABILITIES_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_CAPABILITIES_ADDR

static

◆ REG_COMPAT_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_COMPAT_ADDR

static

Register addresses.

◆ REG_CP_INS_LEN_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_CP_INS_LEN_ADDR

static

◆ REG_CP_INS_LIST_CLR_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_CP_INS_LIST_CLR_ADDR

static

◆ REG_CP_INS_LIST_LOAD_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_CP_INS_LIST_LOAD_ADDR

static

◆ REG_CP_INS_LIST_OCC_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_CP_INS_LIST_OCC_ADDR

static

◆ REG_CP_REM_LEN_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_CP_REM_LEN_ADDR

static

◆ REG_CP_REM_LIST_CLR_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_CP_REM_LIST_CLR_ADDR

static

◆ REG_CP_REM_LIST_LOAD_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_CP_REM_LIST_LOAD_ADDR

static

◆ REG_CP_REM_LIST_OCC_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_CP_REM_LIST_OCC_ADDR

static

◆ REG_DIRECTION_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_DIRECTION_ADDR

static

◆ REG_DIRECTION_ADDR_V1

const uint32_t uhd::rfnoc::fft_block_control::REG_DIRECTION_ADDR_V1

static

◆ REG_LENGTH_LOG2_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_LENGTH_LOG2_ADDR

static

◆ REG_LENGTH_LOG2_ADDR_V1

const uint32_t uhd::rfnoc::fft_block_control::REG_LENGTH_LOG2_ADDR_V1

static

◆ REG_MAGNITUDE_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_MAGNITUDE_ADDR

static

◆ REG_MAGNITUDE_ADDR_V1

const uint32_t uhd::rfnoc::fft_block_control::REG_MAGNITUDE_ADDR_V1

static

◆ REG_ORDER_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_ORDER_ADDR

static

◆ REG_ORDER_ADDR_V1

const uint32_t uhd::rfnoc::fft_block_control::REG_ORDER_ADDR_V1

static

◆ REG_OVERFLOW_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_OVERFLOW_ADDR

static

◆ REG_PORT_CONFIG_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_PORT_CONFIG_ADDR

static

◆ REG_RESET_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_RESET_ADDR

static

◆ REG_RESET_ADDR_V1

const uint32_t uhd::rfnoc::fft_block_control::REG_RESET_ADDR_V1

static

Register addresses of the FFT block version 1.

◆ REG_SCALING_ADDR

const uint32_t uhd::rfnoc::fft_block_control::REG_SCALING_ADDR

static

◆ REG_SCALING_ADDR_V1

const uint32_t uhd::rfnoc::fft_block_control::REG_SCALING_ADDR_V1

static

The documentation for this class was generated from the following file:

fft_block_control.hpp

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ get_bypass_mode()

◆ get_cp_insertion_list()

◆ get_cp_removal_list()

◆ get_direction()

◆ get_length()

◆ get_magnitude()

◆ get_max_cp_insertion_list_length()

◆ get_max_cp_length()

◆ get_max_cp_removal_list_length()

◆ get_max_length()

◆ get_scaling()

◆ get_shift_config()

◆ set_bypass_mode()

◆ set_cp_insertion_list()

◆ set_cp_removal_list()

◆ set_direction()

◆ set_length()

◆ set_magnitude()

◆ set_scaling()

◆ set_scaling_factor()

◆ set_shift_config()

Member Data Documentation

◆ REG_BYPASS_ADDR

◆ REG_CAPABILITIES2_ADDR

◆ REG_CAPABILITIES_ADDR

◆ REG_COMPAT_ADDR

◆ REG_CP_INS_LEN_ADDR

◆ REG_CP_INS_LIST_CLR_ADDR

◆ REG_CP_INS_LIST_LOAD_ADDR

◆ REG_CP_INS_LIST_OCC_ADDR

◆ REG_CP_REM_LEN_ADDR

◆ REG_CP_REM_LIST_CLR_ADDR

◆ REG_CP_REM_LIST_LOAD_ADDR

◆ REG_CP_REM_LIST_OCC_ADDR

◆ REG_DIRECTION_ADDR

◆ REG_DIRECTION_ADDR_V1

◆ REG_LENGTH_LOG2_ADDR

◆ REG_LENGTH_LOG2_ADDR_V1

◆ REG_MAGNITUDE_ADDR

◆ REG_MAGNITUDE_ADDR_V1

◆ REG_ORDER_ADDR

◆ REG_ORDER_ADDR_V1

◆ REG_OVERFLOW_ADDR

◆ REG_PORT_CONFIG_ADDR

◆ REG_RESET_ADDR

◆ REG_RESET_ADDR_V1

◆ REG_SCALING_ADDR

◆ REG_SCALING_ADDR_V1
