uhd::rfnoc::radio_control Class Reference

#include <uhd/rfnoc/radio_control.hpp>

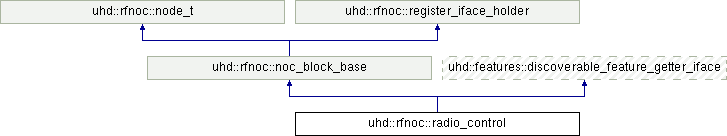

Inheritance diagram for uhd::rfnoc::radio_control:

Public Member Functions
virtual double	set_rate (const double rate)=0
	Set the sample rate. More...
virtual double	get_rate () const =0
	Get the sample rate. More...
virtual uhd::meta_range_t	get_rate_range () const =0
	Return a list of valid rates. More...
virtual std::string	get_tx_antenna (const size_t chan) const =0
virtual std::vector< std::string >	get_tx_antennas (const size_t chan) const =0
virtual void	set_tx_antenna (const std::string &ant, const size_t chan)=0
virtual std::string	get_rx_antenna (const size_t chan) const =0
virtual std::vector< std::string >	get_rx_antennas (const size_t chan) const =0
virtual void	set_rx_antenna (const std::string &ant, const size_t chan)=0
virtual double	get_tx_frequency (const size_t chan)=0
virtual double	set_tx_frequency (const double freq, size_t chan)=0
virtual void	set_tx_tune_args (const uhd::device_addr_t &args, const size_t chan)=0
virtual uhd::freq_range_t	get_tx_frequency_range (const size_t chan) const =0
virtual double	get_rx_frequency (const size_t chan)=0
virtual double	set_rx_frequency (const double freq, const size_t chan)=0
virtual void	set_rx_tune_args (const uhd::device_addr_t &args, const size_t chan)=0
virtual uhd::freq_range_t	get_rx_frequency_range (const size_t chan) const =0
virtual std::vector< std::string >	get_tx_gain_names (const size_t chan) const =0
virtual uhd::gain_range_t	get_tx_gain_range (const size_t chan) const =0
virtual uhd::gain_range_t	get_tx_gain_range (const std::string &name, const size_t chan) const =0
virtual double	get_tx_gain (const size_t chan)=0
virtual double	get_tx_gain (const std::string &name, const size_t chan)=0
virtual double	set_tx_gain (const double gain, const size_t chan)=0
virtual double	set_tx_gain (const double gain, const std::string &name, const size_t chan)=0
virtual bool	has_tx_power_reference (const size_t chan)=0
virtual void	set_tx_power_reference (const double power_dbm, const size_t chan)=0
virtual double	get_tx_power_reference (const size_t chan)=0
virtual std::vector< std::string >	get_tx_power_ref_keys (const size_t chan=0)=0
virtual meta_range_t	get_tx_power_range (const size_t chan)=0
virtual std::vector< std::string >	get_rx_gain_names (const size_t chan) const =0
virtual uhd::gain_range_t	get_rx_gain_range (const size_t chan) const =0
virtual uhd::gain_range_t	get_rx_gain_range (const std::string &name, const size_t chan) const =0
virtual double	get_rx_gain (const size_t chan)=0
virtual double	get_rx_gain (const std::string &name, const size_t chan)=0
virtual double	set_rx_gain (const double gain, const size_t chan)=0
virtual double	set_rx_gain (const double gain, const std::string &name, const size_t chan)=0
virtual void	set_rx_agc (const bool enable, const size_t chan)=0
virtual bool	has_rx_power_reference (const size_t chan)=0
virtual void	set_rx_power_reference (const double power_dbm, const size_t chan)=0
virtual double	get_rx_power_reference (const size_t chan)=0
virtual std::vector< std::string >	get_rx_power_ref_keys (const size_t chan=0)=0
virtual meta_range_t	get_rx_power_range (const size_t chan)=0
virtual std::vector< std::string >	get_tx_gain_profile_names (const size_t chan) const =0
virtual std::vector< std::string >	get_rx_gain_profile_names (const size_t chan) const =0
virtual void	set_tx_gain_profile (const std::string &profile, const size_t chan)=0
virtual void	set_rx_gain_profile (const std::string &profile, const size_t chan)=0
virtual std::string	get_tx_gain_profile (const size_t chan) const =0
virtual std::string	get_rx_gain_profile (const size_t chan) const =0
virtual meta_range_t	get_tx_bandwidth_range (size_t chan) const =0
virtual double	get_tx_bandwidth (const size_t chan)=0
virtual double	set_tx_bandwidth (const double bandwidth, const size_t chan)=0
virtual meta_range_t	get_rx_bandwidth_range (size_t chan) const =0
virtual double	get_rx_bandwidth (const size_t chan)=0
virtual double	set_rx_bandwidth (const double bandwidth, const size_t chan)=0
virtual std::vector< std::string >	get_rx_lo_names (const size_t chan) const =0
virtual std::vector< std::string >	get_rx_lo_sources (const std::string &name, const size_t chan) const =0
virtual freq_range_t	get_rx_lo_freq_range (const std::string &name, const size_t chan) const =0
virtual void	set_rx_lo_source (const std::string &src, const std::string &name, const size_t chan)=0
virtual const std::string	get_rx_lo_source (const std::string &name, const size_t chan)=0
virtual void	set_rx_lo_export_enabled (bool enabled, const std::string &name, const size_t chan)=0
virtual bool	get_rx_lo_export_enabled (const std::string &name, const size_t chan) const =0
virtual double	set_rx_lo_freq (double freq, const std::string &name, const size_t chan)=0
virtual double	get_rx_lo_freq (const std::string &name, const size_t chan)=0
virtual std::vector< std::string >	get_tx_lo_names (const size_t chan) const =0
virtual std::vector< std::string >	get_tx_lo_sources (const std::string &name, const size_t chan)=0
virtual freq_range_t	get_tx_lo_freq_range (const std::string &name, const size_t chan)=0
virtual void	set_tx_lo_source (const std::string &src, const std::string &name, const size_t chan)=0
virtual const std::string	get_tx_lo_source (const std::string &name, const size_t chan)=0
virtual void	set_tx_lo_export_enabled (const bool enabled, const std::string &name, const size_t chan)=0
virtual bool	get_tx_lo_export_enabled (const std::string &name, const size_t chan)=0
virtual double	set_tx_lo_freq (const double freq, const std::string &name, const size_t chan)=0
virtual double	get_tx_lo_freq (const std::string &name, const size_t chan)=0
virtual void	set_tx_dc_offset (const std::complex< double > &offset, size_t chan)=0
virtual meta_range_t	get_tx_dc_offset_range (size_t chan) const =0
virtual void	set_tx_iq_balance (const std::complex< double > &correction, size_t chan)=0
virtual void	set_rx_dc_offset (const bool enb, size_t chan=ALL_CHANS)=0
virtual void	set_rx_dc_offset (const std::complex< double > &offset, size_t chan)=0
virtual meta_range_t	get_rx_dc_offset_range (size_t chan) const =0
virtual void	set_rx_iq_balance (const bool enb, size_t chan)=0
virtual void	set_rx_iq_balance (const std::complex< double > &correction, size_t chan)=0
virtual std::vector< std::string >	get_gpio_banks () const =0
virtual void	set_gpio_attr (const std::string &bank, const std::string &attr, const uint32_t value)=0
virtual uint32_t	get_gpio_attr (const std::string &bank, const std::string &attr)=0
virtual std::vector< std::string >	get_rx_sensor_names (size_t chan) const =0
virtual uhd::sensor_value_t	get_rx_sensor (const std::string &name, size_t chan)=0
virtual std::vector< std::string >	get_tx_sensor_names (size_t chan) const =0
virtual uhd::sensor_value_t	get_tx_sensor (const std::string &name, size_t chan)=0
virtual void	issue_stream_cmd (const uhd::stream_cmd_t &stream_cmd, const size_t port)=0
virtual void	enable_rx_timestamps (const bool enable, const size_t chan)=0
virtual std::string	get_slot_name () const =0
	Returns this radio's slot name (typically "A" or "B") More...
virtual size_t	get_chan_from_dboard_fe (const std::string &fe, const uhd::direction_t direction) const =0
	Return the channel that corresponds to a frontend's name. More...
virtual std::string	get_dboard_fe_from_chan (const size_t chan, const uhd::direction_t direction) const =0
	Return the frontend name for a channel index. More...
virtual std::string	get_fe_name (const size_t chan, const uhd::direction_t direction) const =0
	Return the name of the frontend, as given by the dboard driver. More...
virtual void	set_db_eeprom (const uhd::eeprom_map_t &db_eeprom)=0
	Update the daughterboard EEPROM. More...
virtual uhd::eeprom_map_t	get_db_eeprom ()=0
	Return the content of the daughterboard EEPROM. More...
Public Member Functions inherited from uhd::rfnoc::noc_block_base
virtual	~noc_block_base ()
std::string	get_unique_id () const
	Unique ID for an RFNoC block is its block ID. More...
size_t	get_num_input_ports () const
	Number of input ports. Note: This gets passed into this block from the. More...
size_t	get_num_output_ports () const
	Number of output ports. Note: This gets passed outto this block from the. More...
noc_id_t	get_noc_id () const
const block_id_t &	get_block_id () const
double	get_tick_rate () const
size_t	get_mtu (const res_source_info &edge)
uhd::device_addr_t	get_block_args () const
uhd::property_tree::sptr &	get_tree () const
	Return a reference to this block's subtree. More...
uhd::property_tree::sptr &	get_tree ()
	Return a reference to this block's subtree (non-const version) More...
Public Member Functions inherited from uhd::rfnoc::node_t
	node_t ()
virtual	~node_t ()
virtual std::string	get_unique_id () const
	Return a unique identifier string for this node. In every RFNoC graph,. More...
virtual size_t	get_num_input_ports () const =0
virtual size_t	get_num_output_ports () const =0
std::vector< std::string >	get_property_ids () const
template<typename prop_data_t >
void	set_property (const std::string &id, const prop_data_t &val, const size_t instance=0)
void	set_properties (const uhd::device_addr_t &props, const size_t instance=0)
template<typename prop_data_t >
const prop_data_t &	get_property (const std::string &id, const size_t instance=0)
virtual void	set_command_time (uhd::time_spec_t time, const size_t instance)
virtual uhd::time_spec_t	get_command_time (const size_t instance) const
virtual void	clear_command_time (const size_t instance)
Public Member Functions inherited from uhd::rfnoc::register_iface_holder
	register_iface_holder (register_iface::sptr reg)
virtual	~register_iface_holder ()=default
register_iface &	regs ()
Public Member Functions inherited from uhd::features::discoverable_feature_getter_iface
virtual	~discoverable_feature_getter_iface ()=default
template<typename T >
T &	get_feature ()
	Retrieves a feature of the specified type. More...
template<typename T >
bool	has_feature ()
	Determines whether a given feature exists. More...
virtual std::vector< std::string >	enumerate_features ()=0
	Enumerate all discoverable features present on the device. More...

Static Public Attributes
static const std::string	ALL_LOS
static const std::string	ALL_GAINS
static constexpr size_t	ALL_CHANS = size_t(~0)
Static Public Attributes inherited from uhd::rfnoc::node_t
static const size_t	ANY_PORT = size_t(~0)

Additional Inherited Members
Public Types inherited from uhd::rfnoc::noc_block_base
using	sptr = std::shared_ptr< noc_block_base >
using	make_args_ptr = std::unique_ptr< make_args_t >
	Opaque pointer to the constructor arguments. More...
Public Types inherited from uhd::rfnoc::node_t
enum class	forwarding_policy_t {   ONE_TO_ONE , ONE_TO_FAN , ONE_TO_ALL_IN , ONE_TO_ALL_OUT ,   ONE_TO_ALL , DROP , USE_MAP }
	Types of property/action forwarding for those not defined by the block itself. More...
using	resolver_fn_t = std::function< void(void)>
using	resolve_callback_t = std::function< void(void)>
using	action_handler_t = std::function< void(const res_source_info &, action_info::sptr)>
using	forwarding_map_t = std::unordered_map< res_source_info, std::vector< res_source_info > >
Protected Types inherited from uhd::rfnoc::node_t
using	prop_ptrs_t = std::unordered_set< property_base_t * >
Protected Member Functions inherited from uhd::rfnoc::noc_block_base
	noc_block_base (make_args_ptr make_args)
void	set_num_input_ports (const size_t num_ports)
	Update number of input ports. More...
void	set_num_output_ports (const size_t num_ports)
	Update number of output ports. More...
void	set_tick_rate (const double tick_rate)
void	set_mtu_forwarding_policy (const forwarding_policy_t policy)
void	set_mtu (const res_source_info &edge, const size_t new_mtu)
property_base_t *	get_mtu_prop_ref (const res_source_info &edge)
std::shared_ptr< mb_controller >	get_mb_controller ()
virtual void	deinit ()
Protected Member Functions inherited from uhd::rfnoc::node_t
void	register_property (property_base_t *prop, resolve_callback_t &&clean_callback=nullptr)
void	add_property_resolver (prop_ptrs_t &&inputs, prop_ptrs_t &&outputs, resolver_fn_t &&resolver_fn)
void	set_prop_forwarding_policy (forwarding_policy_t policy, const std::string &prop_id="")
void	set_prop_forwarding_map (const forwarding_map_t &map)
template<typename prop_data_t >
void	set_property (const std::string &id, const prop_data_t &val, const res_source_info &src_info)
template<typename prop_data_t >
const prop_data_t &	get_property (const std::string &id, const res_source_info &src_info)
void	register_action_handler (const std::string &id, action_handler_t &&handler)
void	set_action_forwarding_policy (forwarding_policy_t policy, const std::string &action_key="")
void	set_action_forwarding_map (const forwarding_map_t &map)
void	post_action (const res_source_info &edge_info, action_info::sptr action)
virtual bool	check_topology (const std::vector< size_t > &connected_inputs, const std::vector< size_t > &connected_outputs)
virtual void	shutdown ()
Protected Member Functions inherited from uhd::rfnoc::register_iface_holder
void	update_reg_iface (register_iface::sptr new_iface=nullptr)
Static Protected Attributes inherited from uhd::rfnoc::node_t
static dirtifier_t	ALWAYS_DIRTY
	A dirtifyer object, useful for properties that always need updating. More...

Detailed Description

Parent class for radio block controllers

Member Function Documentation

enable_rx_timestamps()

virtual void uhd::rfnoc::radio_control::enable_rx_timestamps ( const bool  enable, const size_t  chan  )

pure virtual

Enable or disable the setting of timestamps on Rx.

get_chan_from_dboard_fe()

virtual size_t uhd::rfnoc::radio_control::get_chan_from_dboard_fe ( const std::string &  fe, const uhd::direction_t  direction  ) const

pure virtual

Return the channel that corresponds to a frontend's name.

get_db_eeprom()

virtual uhd::eeprom_map_t uhd::rfnoc::radio_control::get_db_eeprom ( )

pure virtual

Return the content of the daughterboard EEPROM.

get_dboard_fe_from_chan()

virtual std::string uhd::rfnoc::radio_control::get_dboard_fe_from_chan ( const size_t  chan, const uhd::direction_t  direction  ) const

pure virtual

Return the frontend name for a channel index.

get_fe_name()

virtual std::string uhd::rfnoc::radio_control::get_fe_name ( const size_t  chan, const uhd::direction_t  direction  ) const

pure virtual

Return the name of the frontend, as given by the dboard driver.

get_gpio_attr()

virtual uint32_t uhd::rfnoc::radio_control::get_gpio_attr ( const std::string &  bank, const std::string &  attr  )

pure virtual

Get a GPIO attribute on a particular GPIO bank. Possible attribute names:

• CTRL - 1 for ATR mode 0 for GPIO mode
• DDR - 1 for output 0 for input
• OUT - GPIO output level (not ATR mode)
• ATR_0X - ATR idle state
• ATR_RX - ATR receive only state
• ATR_TX - ATR transmit only state
• ATR_XX - ATR full duplex state
• READBACK - readback input GPIOs

  Parameters

  bank	the name of a GPIO bank
  attr	the name of a GPIO attribute

  Returns

  the value set for this attribute

get_gpio_banks()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_gpio_banks ( ) const

pure virtual

Returns the list of GPIO banks that are associated with this radio.

Returns

list of GPIO bank names

get_rate()

virtual double uhd::rfnoc::radio_control::get_rate ( ) const

pure virtual

Get the sample rate.

get_rate_range()

virtual uhd::meta_range_t uhd::rfnoc::radio_control::get_rate_range ( ) const

pure virtual

Return a list of valid rates.

get_rx_antenna()

virtual std::string uhd::rfnoc::radio_control::get_rx_antenna ( const size_t  chan ) const

pure virtual

Return the selected RX antenna for channel chan.

Returns

The selected antenna.

get_rx_antennas()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_rx_antennas ( const size_t  chan ) const

pure virtual

Return a list of valid RX antenna for channel chan.

Returns

The selected antenna.

get_rx_bandwidth()

virtual double uhd::rfnoc::radio_control::get_rx_bandwidth ( const size_t  chan )

pure virtual

Return the analog filter bandwidth channel chan

Returns

The actual bandwidth value

get_rx_bandwidth_range()

virtual meta_range_t uhd::rfnoc::radio_control::get_rx_bandwidth_range ( size_t  chan ) const

pure virtual

Return a range of valid RX bandwidths

get_rx_dc_offset_range()

virtual meta_range_t uhd::rfnoc::radio_control::get_rx_dc_offset_range ( size_t  chan ) const

pure virtual

Get the valid range for RX DC offset values.

Parameters

chan	the channel index

get_rx_frequency()

virtual double uhd::rfnoc::radio_control::get_rx_frequency ( const size_t  chan )

pure virtual

Return the current receive LO frequency on channel chan.

Returns

The current LO frequency.

get_rx_frequency_range()

virtual uhd::freq_range_t uhd::rfnoc::radio_control::get_rx_frequency_range ( const size_t  chan ) const

pure virtual

Return the range of frequencies that chan can be tuned to.

Returns

The range of frequencies that we can tune the RX chan to

get_rx_gain() [1/2]

virtual double uhd::rfnoc::radio_control::get_rx_gain ( const size_t  chan )

pure virtual

Return the overall receive gain on channel chan

Returns

The actual gain value

get_rx_gain() [2/2]

virtual double uhd::rfnoc::radio_control::get_rx_gain ( const std::string &  name, const size_t  chan  )

pure virtual

Return the receive gain name on channel chan

Returns

The actual gain value

get_rx_gain_names()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_rx_gain_names ( const size_t  chan ) const

pure virtual

Return a list of valid RX gain names

get_rx_gain_profile()

virtual std::string uhd::rfnoc::radio_control::get_rx_gain_profile ( const size_t  chan ) const

pure virtual

Set the RX gain profile

get_rx_gain_profile_names()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_rx_gain_profile_names ( const size_t  chan ) const

pure virtual

Return a list of TX gain profiles for this radio

get_rx_gain_range() [1/2]

virtual uhd::gain_range_t uhd::rfnoc::radio_control::get_rx_gain_range ( const size_t  chan ) const

pure virtual

Return a range of valid RX gains

get_rx_gain_range() [2/2]

virtual uhd::gain_range_t uhd::rfnoc::radio_control::get_rx_gain_range ( const std::string &  name, const size_t  chan  ) const

pure virtual

Return a range of valid RX gains

get_rx_lo_export_enabled()

virtual bool uhd::rfnoc::radio_control::get_rx_lo_export_enabled ( const std::string &  name, const size_t  chan  ) const

pure virtual

Returns true if the currently selected LO is being exported.

Parameters

name	the name of the LO stage to query
chan	the channel index 0 to N-1

get_rx_lo_freq()

virtual double uhd::rfnoc::radio_control::get_rx_lo_freq ( const std::string &  name, const size_t  chan  )

pure virtual

Get the current RX LO frequency (Advanced). If the channel does not have independently configurable LOs the current rf frequency will be returned.

Parameters

name	the name of the LO stage to query
chan	the channel index 0 to N-1

Returns

the configured LO frequency

get_rx_lo_freq_range()

virtual freq_range_t uhd::rfnoc::radio_control::get_rx_lo_freq_range ( const std::string &  name, const size_t  chan  ) const

pure virtual

Get the LO frequency range of the RX LO. If the channel does not have independently configurable LOs the rf frequency range will be returned.

Parameters

name	the name of the LO stage to query
chan	the channel index 0 to N-1

Returns

a frequency range object

get_rx_lo_names()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_rx_lo_names ( const size_t  chan ) const

pure virtual

Get a list of possible LO stage names

Parameters

chan	the channel index 0 to N-1

Returns

a vector of strings for possible LO names

get_rx_lo_source()

virtual const std::string uhd::rfnoc::radio_control::get_rx_lo_source ( const std::string &  name, const size_t  chan  )

pure virtual

Get the currently set LO source. Channels without controllable LO sources will return "internal"

Parameters

name	the name of the LO stage to query
chan	the channel index 0 to N-1

Returns

the configured LO source

get_rx_lo_sources()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_rx_lo_sources ( const std::string &  name, const size_t  chan  ) const

pure virtual

Get a list of possible LO sources.

Channels which do not have controllable LO sources will return "internal".

Parameters

name	the name of the LO stage to query
chan	the channel index 0 to N-1

Returns

a vector of strings for possible settings

get_rx_power_range()

virtual meta_range_t uhd::rfnoc::radio_control::get_rx_power_range ( const size_t  chan )

pure virtual

Return the available RX power range given the current configuration

This will return the range of available power levels given the current frequency, gain profile, antenna, and whatever other settings may affect the available power ranges. Note that the available power range may change frequently, so don't assume an immutable range.

Parameters

chan	The channel index

get_rx_power_ref_keys()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_rx_power_ref_keys ( const size_t  chan = 0 )

pure virtual

Return the keys by which the power calibration data is referenced for this channel.

The first entry is the key, the second the serial. These are the same arguments that can be used for uhd::usrp::cal::database::read_cal_data() and friends. See also Serial number and key.

Note that the key can change at runtime, e.g., when the antenna port is switched.

The difference between this and has_rx_power_reference() is that the latter requires both device support as well as calibration data, whereas this function will never throw, and will always return a non-empty vector if device support is there, even if the device does not have calbration data loaded.

Returns

an empty vector if no power calibration is supported, or a vector of length 2 with key and serial if it does.

get_rx_power_reference()

virtual double uhd::rfnoc::radio_control::get_rx_power_reference ( const size_t  chan )

pure virtual

Return the actual reference RX power level.

Note: This functionality is not supported for most devices, and will cause a uhd::not_implemented_error exception to be thrown on devices that do not have this functionality.

For more information on how to use this API, see Power Level Controls.

Parameters

chan	The channel for which this setting is queried

Exceptions

uhd::not_implemented_error

if this functionality does not exist for this device

get_rx_sensor()

virtual uhd::sensor_value_t uhd::rfnoc::radio_control::get_rx_sensor ( const std::string &  name, size_t  chan  )

pure virtual

Return the sensor value for sensor name

Parameters

name	Sensor name (e.g. "lo_locked")
chan	Channel index

Exceptions

uhd::key_error

if the sensor does not exist

get_rx_sensor_names()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_rx_sensor_names ( size_t  chan ) const

pure virtual

Return a list of RX sensors

The names returned in this list can be used as an input to get_rx_sensor()

get_slot_name()

virtual std::string uhd::rfnoc::radio_control::get_slot_name ( ) const

pure virtual

Returns this radio's slot name (typically "A" or "B")

get_tx_antenna()

virtual std::string uhd::rfnoc::radio_control::get_tx_antenna ( const size_t  chan ) const

pure virtual

Return the selected TX antenna for channel chan.

Returns

The selected antenna.

get_tx_antennas()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_tx_antennas ( const size_t  chan ) const

pure virtual

Return a list of valid TX antenna for channel chan.

Returns

The selected antenna.

get_tx_bandwidth()

virtual double uhd::rfnoc::radio_control::get_tx_bandwidth ( const size_t  chan )

pure virtual

Return the analog filter bandwidth channel chan

Returns

The actual bandwidth value

get_tx_bandwidth_range()

virtual meta_range_t uhd::rfnoc::radio_control::get_tx_bandwidth_range ( size_t  chan ) const

pure virtual

Return a range of valid TX bandwidths

get_tx_dc_offset_range()

virtual meta_range_t uhd::rfnoc::radio_control::get_tx_dc_offset_range ( size_t  chan ) const

pure virtual

Get the valid range for TX DC offset values.

Parameters

chan	the channel index

get_tx_frequency()

virtual double uhd::rfnoc::radio_control::get_tx_frequency ( const size_t  chan )

pure virtual

Return the current transmit LO frequency on channel chan.

Returns

The current LO frequency.

get_tx_frequency_range()

virtual uhd::freq_range_t uhd::rfnoc::radio_control::get_tx_frequency_range ( const size_t  chan ) const

pure virtual

Return the range of frequencies that chan can be tuned to.

Returns

The range of frequencies that we can tune the TX chan to

get_tx_gain() [1/2]

virtual double uhd::rfnoc::radio_control::get_tx_gain ( const size_t  chan )

pure virtual

Return the overall transmit gain on channel chan

Returns

The actual gain value

get_tx_gain() [2/2]

virtual double uhd::rfnoc::radio_control::get_tx_gain ( const std::string &  name, const size_t  chan  )

pure virtual

Return the transmit gain name on channel chan

Returns

The actual gain value

get_tx_gain_names()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_tx_gain_names ( const size_t  chan ) const

pure virtual

Return a list of valid TX gain names

get_tx_gain_profile()

virtual std::string uhd::rfnoc::radio_control::get_tx_gain_profile ( const size_t  chan ) const

pure virtual

Return the TX gain profile

get_tx_gain_profile_names()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_tx_gain_profile_names ( const size_t  chan ) const

pure virtual

Return a list of TX gain profiles for this radio

get_tx_gain_range() [1/2]

virtual uhd::gain_range_t uhd::rfnoc::radio_control::get_tx_gain_range ( const size_t  chan ) const

pure virtual

Return a range of valid TX gains

get_tx_gain_range() [2/2]

virtual uhd::gain_range_t uhd::rfnoc::radio_control::get_tx_gain_range ( const std::string &  name, const size_t  chan  ) const

pure virtual

Return a range of valid TX gains

get_tx_lo_export_enabled()

virtual bool uhd::rfnoc::radio_control::get_tx_lo_export_enabled ( const std::string &  name, const size_t  chan  )

pure virtual

Returns true if the currently selected LO is being exported.

Parameters

name	the name of the LO stage to query
chan	the channel index 0 to N-1

get_tx_lo_freq()

virtual double uhd::rfnoc::radio_control::get_tx_lo_freq ( const std::string &  name, const size_t  chan  )

pure virtual

Get the current TX LO frequency (Advanced).

See also multi_usrp::get_tx_lo_freq()

If the channel does not have independently configurable LOs the current RF frequency will be returned.

Parameters

name	the name of the LO stage to query
chan	the channel index 0 to N-1

Returns

the configured LO frequency

get_tx_lo_freq_range()

virtual freq_range_t uhd::rfnoc::radio_control::get_tx_lo_freq_range ( const std::string &  name, const size_t  chan  )

pure virtual

Get the LO frequency range of the tx LO. If the channel does not have independently configurable LOs the rf frequency range will be returned.

Parameters

name	the name of the LO stage to query
chan	the channel index 0 to N-1

Returns

a frequency range object

get_tx_lo_names()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_tx_lo_names ( const size_t  chan ) const

pure virtual

Get a list of possible LO stage names

Parameters

chan	the channel index 0 to N-1

Returns

a vector of strings for possible LO names

get_tx_lo_source()

virtual const std::string uhd::rfnoc::radio_control::get_tx_lo_source ( const std::string &  name, const size_t  chan  )

pure virtual

Get the currently set LO source. Channels without controllable LO sources will return "internal"

Parameters

name	the name of the LO stage to query
chan	the channel index 0 to N-1

Returns

the configured LO source

get_tx_lo_sources()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_tx_lo_sources ( const std::string &  name, const size_t  chan  )

pure virtual

Get a list of possible LO sources.

Channels which do not have controllable LO sources will return "internal".

Parameters

name	the name of the LO stage to query
chan	the channel index 0 to N-1

Returns

a vector of strings for possible settings

get_tx_power_range()

virtual meta_range_t uhd::rfnoc::radio_control::get_tx_power_range ( const size_t  chan )

pure virtual

Return the available TX power range given the current configuration

This will return the range of available power levels given the current frequency, gain profile, antenna, and whatever other settings may affect the available power ranges. Note that the available power range may change frequently, so don't assume an immutable range.

Parameters

chan	The channel index

get_tx_power_ref_keys()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_tx_power_ref_keys ( const size_t  chan = 0 )

pure virtual

Return the keys by which the power calibration data is referenced for this channel.

The first entry is the key, the second the serial. These are the same arguments that can be used for uhd::usrp::cal::database::read_cal_data() and friends. See also Serial number and key.

Note that the key can change at runtime, e.g., when the antenna port is switched.

The difference between this and has_tx_power_reference() is that the latter requires both device support as well as calibration data, whereas this function will never throw, and will always return a non-empty vector if device support is there, even if the device does not have calbration data loaded.

Returns

an empty vector if no power calibration is supported, or a vector of length 2 with key and serial if it does.

get_tx_power_reference()

virtual double uhd::rfnoc::radio_control::get_tx_power_reference ( const size_t  chan )

pure virtual

Return the actual reference TX power level.

Note: This functionality is not supported for most devices, and will cause a uhd::not_implemented_error exception to be thrown on devices that do not have this functionality.

For more information on how to use this API, see Power Level Controls.

Parameters

chan	The channel for which this setting is queried

Exceptions

uhd::not_implemented_error

if this functionality does not exist for this device

get_tx_sensor()

virtual uhd::sensor_value_t uhd::rfnoc::radio_control::get_tx_sensor ( const std::string &  name, size_t  chan  )

pure virtual

Return the sensor value for sensor name

Parameters

name	Sensor name (e.g. "lo_locked")
chan	Channel index

Exceptions

uhd::key_error

if the sensor does not exist

get_tx_sensor_names()

virtual std::vector< std::string > uhd::rfnoc::radio_control::get_tx_sensor_names ( size_t  chan ) const

pure virtual

Return a list of TX sensors

The names returned in this list can be used as an input to get_tx_sensor()

has_rx_power_reference()

virtual bool uhd::rfnoc::radio_control::has_rx_power_reference ( const size_t  chan )

pure virtual

Return true if this channel has a reference power API enabled

Many devices either don't have a built-in reference power API, or they require calibration data for it to work. This means that it is not clear, even when the device type is known, if a device supports setting a power reference level. Use this method to query the availability of set_rx_power_reference() and get_rx_power_reference(), which will throw a uhd::not_implemented_error or uhd::runtime_error if they cannot be used.

See Power Level Controls for more information, or query the specific device's manual page to see if a power API is available, and how to enable it.

Parameters

chan	The channel for which this feature is queried

Returns

true if this channel has an RX power API available

has_tx_power_reference()

virtual bool uhd::rfnoc::radio_control::has_tx_power_reference ( const size_t  chan )

pure virtual

Return true if this channel has a reference power API enabled

Many devices either don't have a built-in reference power API, or they require calibration data for it to work. This means that it is not clear, even when the device type is known, if a device supports setting a power reference level. Use this method to query the availability of set_tx_power_reference() and get_tx_power_reference(), which will throw a uhd::not_implemented_error or uhd::runtime_error if they cannot be used.

See Power Level Controls for more information, or query the specific device's manual page to see if a power API is available, and how to enable it.

Parameters

chan	The channel for which this feature is queried

Returns

true if this channel has a TX power API available

issue_stream_cmd()

virtual void uhd::rfnoc::radio_control::issue_stream_cmd ( const uhd::stream_cmd_t &  stream_cmd, const size_t  port  )

pure virtual

Issue stream command: Instruct the RX part of the radio to send samples

Parameters

stream_cmd	The actual stream command to execute
port	The port for which the stream command is meant

set_db_eeprom()

virtual void uhd::rfnoc::radio_control::set_db_eeprom ( const uhd::eeprom_map_t &  db_eeprom )

pure virtual

Update the daughterboard EEPROM.

set_gpio_attr()

virtual void uhd::rfnoc::radio_control::set_gpio_attr ( const std::string &  bank, const std::string &  attr, const uint32_t  value  )

pure virtual

Set a GPIO attribute on a particular GPIO bank. Possible attribute names:

• CTRL - 1 for ATR mode 0 for GPIO mode
• DDR - 1 for output 0 for input
• OUT - GPIO output level (not ATR mode)
• ATR_0X - ATR idle state
• ATR_RX - ATR receive only state
• ATR_TX - ATR transmit only state
• ATR_XX - ATR full duplex state

  Parameters

  bank	the name of a GPIO bank (e.g., FP0)
  attr	the name of a GPIO attribute (e.g., CTRL)
  value	the new value for this GPIO bank

set_rate()

virtual double uhd::rfnoc::radio_control::set_rate ( const double  rate )

pure virtual

Set the sample rate.

set_rx_agc()

virtual void uhd::rfnoc::radio_control::set_rx_agc ( const bool  enable, const size_t  chan  )

pure virtual

Enable RX AGC on this radio

Exceptions

uhd::not_implemented_error

if this radio doesn't support RX AGC

set_rx_antenna()

virtual void uhd::rfnoc::radio_control::set_rx_antenna ( const std::string &  ant, const size_t  chan  )

pure virtual

Select RX antenna for channel chan.

Exceptions

uhd::value_error

if ant is not a valid value.

set_rx_bandwidth()

virtual double uhd::rfnoc::radio_control::set_rx_bandwidth ( const double  bandwidth, const size_t  chan  )

pure virtual

Set the analog filter bandwidth channel chan

This function will attempt to set the analog bandwidth.

Returns

The actual bandwidth value

set_rx_dc_offset() [1/2]

virtual void uhd::rfnoc::radio_control::set_rx_dc_offset ( const bool  enb, size_t  chan = ALL_CHANS  )

pure virtual

Enable/disable the automatic RX DC offset correction. The automatic correction subtracts out the long-run average.

When disabled, the averaging option operation is halted. Once halted, the average value will be held constant until the user re-enables the automatic correction or overrides the value by manually setting the offset.

Parameters

enb	true to enable automatic DC offset correction
chan	the channel index

set_rx_dc_offset() [2/2]

virtual void uhd::rfnoc::radio_control::set_rx_dc_offset ( const std::complex< double > &  offset, size_t  chan  )

pure virtual

Set a constant RX DC offset value.

The value is complex to control both I and Q. Only set this when automatic correction is disabled.

Parameters

offset	the dc offset (1.0 is full-scale)
chan	the channel index 0 to N-1

set_rx_frequency()

virtual double uhd::rfnoc::radio_control::set_rx_frequency ( const double  freq, const size_t  chan  )

pure virtual

Tune the RX frequency for channel chan.

This function will attempt to tune as close as possible, and return a coerced value of the actual tuning result.

If there is a single LO in this radio, and we're doing direct conversion, then this is the LO frequency.

Parameters

freq	Requested frequency
chan	Channel number.

Returns

The actual frequency.

set_rx_gain() [1/2]

virtual double uhd::rfnoc::radio_control::set_rx_gain ( const double  gain, const size_t  chan  )

pure virtual

Set the overall receive gain on channel chan

This function will attempt to set the gain as close as possible, and return a coerced value of the actual gain value.

Returns

The actual gain value

set_rx_gain() [2/2]

virtual double uhd::rfnoc::radio_control::set_rx_gain ( const double  gain, const std::string &  name, const size_t  chan  )

pure virtual

Set the receive gain on channel chan

This function will attempt to set the gain as close as possible, and return a coerced value of the actual gain value.

Returns

The actual gain value

set_rx_gain_profile()

virtual void uhd::rfnoc::radio_control::set_rx_gain_profile ( const std::string &  profile, const size_t  chan  )

pure virtual

Set the RX gain profile

set_rx_iq_balance() [1/2]

virtual void uhd::rfnoc::radio_control::set_rx_iq_balance ( const bool  enb, size_t  chan  )

pure virtual

Enable/disable the automatic IQ imbalance correction.

Parameters

enb	true to enable automatic IQ balance correction
chan	the channel index 0 to N-1

set_rx_iq_balance() [2/2]

virtual void uhd::rfnoc::radio_control::set_rx_iq_balance ( const std::complex< double > &  correction, size_t  chan  )

pure virtual

Enable/disable the automatic IQ imbalance correction.

Parameters

correction	the complex correction (1.0 is full-scale)
chan	the channel index 0 to N-1

set_rx_lo_export_enabled()

virtual void uhd::rfnoc::radio_control::set_rx_lo_export_enabled ( bool  enabled, const std::string &  name, const size_t  chan  )

pure virtual

Set whether the LO used by the usrp device is exported For usrps that support exportable LOs, this function configures if the LO used by chan is exported or not.

Parameters

enabled	if true then export the LO
name	the name of the LO stage to update
chan	the channel index 0 to N-1 for the source channel

set_rx_lo_freq()

virtual double uhd::rfnoc::radio_control::set_rx_lo_freq ( double  freq, const std::string &  name, const size_t  chan  )

pure virtual

Set the RX LO frequency (Advanced).

Parameters

freq	the frequency to set the LO to
name	the name of the LO stage to update
chan	the channel index 0 to N-1

Returns

a coerced LO frequency

set_rx_lo_source()

virtual void uhd::rfnoc::radio_control::set_rx_lo_source ( const std::string &  src, const std::string &  name, const size_t  chan  )

pure virtual

Set the LO source for a channel. For usrps that support selectable LOs, this function allows switching between them. Typical options for source: internal, external.

Parameters

src	a string representing the LO source
name	the name of the LO stage to update
chan	the channel index 0 to N-1

set_rx_power_reference()

virtual void uhd::rfnoc::radio_control::set_rx_power_reference ( const double  power_dbm, const size_t  chan  )

pure virtual

Set the reference RX power level for a given channel

Note: This functionality is not supported for most devices, and will cause a uhd::not_implemented_error exception to be thrown on devices that do not have this functionality.

For more information on how to use this API, see Power Level Controls.

Parameters

power_dbm	The reference power level in dBm
chan	The channel for which this setting applies

Exceptions

uhd::not_implemented_error

if this functionality does not exist for this device

set_rx_tune_args()

virtual void uhd::rfnoc::radio_control::set_rx_tune_args ( const uhd::device_addr_t &  args, const size_t  chan  )

pure virtual

Set the TX tune args, if supported by the hardware.

set_tx_antenna()

virtual void uhd::rfnoc::radio_control::set_tx_antenna ( const std::string &  ant, const size_t  chan  )

pure virtual

Select RX antenna for channel chan.

Exceptions

uhd::value_error

if ant is not a valid value.

set_tx_bandwidth()

virtual double uhd::rfnoc::radio_control::set_tx_bandwidth ( const double  bandwidth, const size_t  chan  )

pure virtual

Set the analog filter bandwidth channel chan

This function will attempt to set the analog bandwidth.

Returns

The actual bandwidth value

set_tx_dc_offset()

virtual void uhd::rfnoc::radio_control::set_tx_dc_offset ( const std::complex< double > &  offset, size_t  chan  )

pure virtual

Set a constant TX DC offset value

The value is complex to control both I and Q.

Parameters

offset	the dc offset (1.0 is full-scale)
chan	the channel index

set_tx_frequency()

virtual double uhd::rfnoc::radio_control::set_tx_frequency ( const double  freq, size_t  chan  )

pure virtual

Tune the TX frequency for channel chan.

This function will attempt to tune as close as possible, and return a coerced value of the actual tuning result.

If there is a single LO in this radio, and we're doing direct conversion, then this is the LO frequency.

Parameters

freq	Frequency in Hz
chan	Channel to tune

Returns

The actual frequency.

set_tx_gain() [1/2]

virtual double uhd::rfnoc::radio_control::set_tx_gain ( const double  gain, const size_t  chan  )

pure virtual

Set the transmit gain on channel chan

This function will attempt to set the gain as close as possible, and return a coerced value of the actual gain value.

This method will set the overall gain. To set a specific gain, use set_tx_gain(const double, const std::string&, const size_t).

Returns

The actual gain value

set_tx_gain() [2/2]

virtual double uhd::rfnoc::radio_control::set_tx_gain ( const double  gain, const std::string &  name, const size_t  chan  )

pure virtual

Set the transmit gain name on channel chan

This function will attempt to set the gain as close as possible, and return a coerced value of the actual gain value.

Returns

The actual gain value

set_tx_gain_profile()

virtual void uhd::rfnoc::radio_control::set_tx_gain_profile ( const std::string &  profile, const size_t  chan  )

pure virtual

Set the TX gain profile

set_tx_iq_balance()

virtual void uhd::rfnoc::radio_control::set_tx_iq_balance ( const std::complex< double > &  correction, size_t  chan  )

pure virtual

Set the TX frontend IQ imbalance correction.

Use this to adjust the magnitude and phase of I and Q.

Parameters

correction	the complex correction
chan	the channel index 0 to N-1

set_tx_lo_export_enabled()

virtual void uhd::rfnoc::radio_control::set_tx_lo_export_enabled ( const bool  enabled, const std::string &  name, const size_t  chan  )

pure virtual

Set whether the LO used by the usrp device is exported For usrps that support exportable LOs, this function configures if the LO used by chan is exported or not.

Parameters

enabled	if true then export the LO
name	the name of the LO stage to update
chan	the channel index 0 to N-1 for the source channel

set_tx_lo_freq()

virtual double uhd::rfnoc::radio_control::set_tx_lo_freq ( const double  freq, const std::string &  name, const size_t  chan  )

pure virtual

Set the tx LO frequency (Advanced).

See also multi_usrp::set_tx_lo_freq().

Parameters

freq	the frequency to set the LO to
name	the name of the LO stage to update
chan	the channel index 0 to N-1

Returns

a coerced LO frequency

set_tx_lo_source()

virtual void uhd::rfnoc::radio_control::set_tx_lo_source ( const std::string &  src, const std::string &  name, const size_t  chan  )

pure virtual

Set the LO source for a channel. For usrps that support selectable LOs, this function allows switching between them. Typical options for source: internal, external.

Parameters

src	a string representing the LO source
name	the name of the LO stage to update
chan	the channel index 0 to N-1

set_tx_power_reference()

virtual void uhd::rfnoc::radio_control::set_tx_power_reference ( const double  power_dbm, const size_t  chan  )

pure virtual

Set the reference TX power level for a given channel

Note: This functionality is not supported for most devices, and will cause a uhd::not_implemented_error exception to be thrown on devices that do not have this functionality.

For more information on how to use this API, see Power Level Controls.

Parameters

power_dbm	The reference power level in dBm
chan	The channel for which this setting applies

Exceptions

uhd::not_implemented_error

if this functionality does not exist for this device

set_tx_tune_args()

virtual void uhd::rfnoc::radio_control::set_tx_tune_args ( const uhd::device_addr_t &  args, const size_t  chan  )

pure virtual

Set the TX tune args, if supported by the hardware.

Member Data Documentation

ALL_CHANS

constexpr size_t uhd::rfnoc::radio_control::ALL_CHANS = size_t(~0)

staticconstexpr

ALL_GAINS

const std::string uhd::rfnoc::radio_control::ALL_GAINS

static

ALL_LOS

const std::string uhd::rfnoc::radio_control::ALL_LOS

static

---

The documentation for this class was generated from the following file:

• include/uhd/rfnoc/radio_control.hpp
